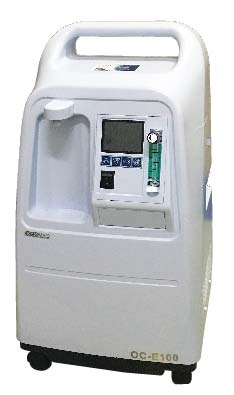

Sysmed Oxygen Concentrator O-Cure Series (E100)
OC E100 10 LPM Oxygen
- Operating System:Timed Cycle/Rapid Pressure Swing
- Power Consumption (W): 480
- Electrical Requirement: 220±10% 50±1 (V/HZ)or Customize as demand
- Delivery Rate(L/min): 0-10
- Oxygen Concentration (%): 93+/-3%
- Outlet Pressure (MPa): 0.05-0.08
- Sound Level (dBA)standard type: ≤50
- Operating Environment Ambient Temperature (℃): 10-40
- Humidity Range (%): ≤80
- Equipment Class and Type: Class Ⅱa
- Safety Alarms & Features: Power Failure, High / Low Pressure,Temperature,
- Current overload or line surge shutdown, Thermal Switch, 40 psig Pressure Relief Valve
- Status Display Screen: Large scale LCD
- timer Standard Configuration
- Intelligent fault diagonis Standard Configuration
- Net weight (kg)26
- Gross Weight (kg)28
- Dimensions (mm)380 x 340 x 690
- Carton mst (mm)440 x 390 x 750
